I was brought in because the cables kept slipping off the spools. Fixing that alone would not have given the client a machine that could do what they wanted, and the old machine could not get there. So I designed the whole system again from the ground up: new spooling, a new drive train, actuators sized from measured torque, a continuous concrete feed and camera-based path correction. The result was a working prototype on under $100K of a $1M budget.

Cable-Driven Parallel Robot Mechanism Design Design for Additive Manufacturing Torque Measurement & Actuator Sizing Servo Systems Concrete Extrusion Machine Vision Project Leadership

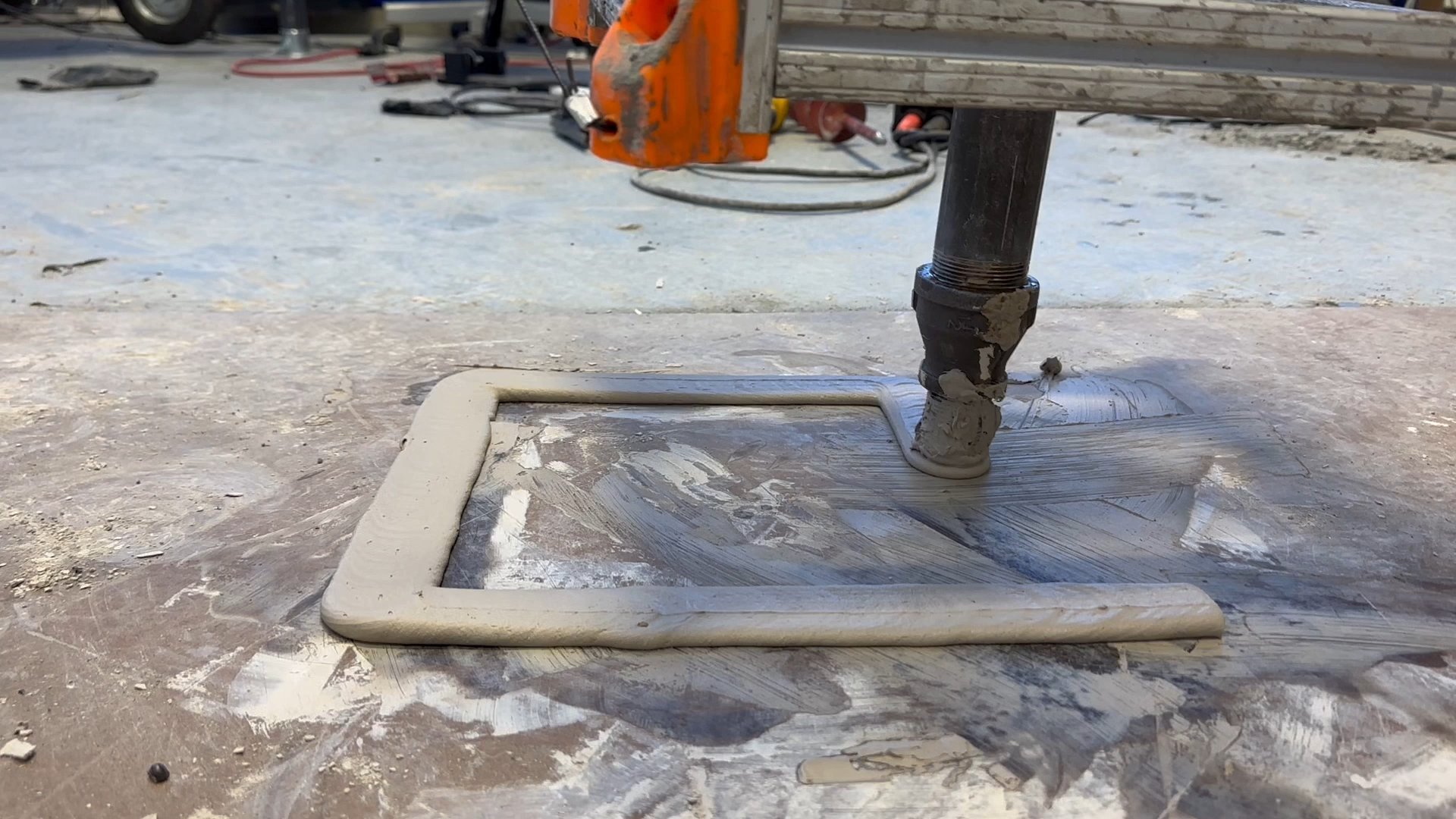

The printer's nozzle laying a continuous concrete bead on a site floor

<$100K

Spent of a $1M budget

~10×

Lower spool-system cost than machined metal

2.5×

Safety factor on measured cable torque

14 mo

To a fully working prototype

01 — Snapshot

Engineering Snapshot.

Challenge

An earlier build of a cable-driven concrete printer could not run reliably on site. Cables slipped off fixed spools, the stepper motors were undersized and carried load on their shafts, and a small bucket extruder limited both how much concrete the machine could hold and how far it could print. The goal was house-scale printing, up to a 100 × 100 ft footprint.

My Role

I joined as a consultant to fix the spooling and became project lead for the redesign, running a team of five engineers and two technicians. I owned the system architecture, the mechanical and mechatronic redesign, actuator sizing and testing, and the path from bench tests to concrete prints.

Systems

Lead-screw spools with a constant cable feed point; FDM parts reinforced with steel rods, lead screws, linear bearings and structural members; belt-driven big and small pulleys with tensioners and a solenoid brake; swappable servos wired with just a power cable and a CAT6 communication cable each; an external concrete pump with a cable-supported hose; and a camera system driving linear actuators on the cables.

Outcome

The first fully functional prototype, printing 8 × 8 ft concrete structures. It printed concrete with a continuous feed from outside the machine and corrected its own path over long runs. It came in under $100K of a $1M budget, leaving the client room to develop a commercial version.

02 — The Story

From a Spool Fix to a Working Machine.

Step 01 — Diagnosis

The Brief Was One Problem. The Machine Had Five.

The brief was the spool. In the earlier build each cable wound onto a spool that could only turn, not move. When the cable sat in the middle of the spool it ran straight onto the pulley. Toward either end it left at an angle, and the length changed. Software tried to compensate for that drift.

On site, the cable slipped off the spool or jumped a groove, and the moment it did, the compensation was wrong for every move after it. Looking at the rest of the machine, the spool was only the first of several problems standing between this build and a printed wall. What the client wanted to achieve wasn't reachable by patching the old machine, so this became a design from the foundations up:

Problem in the earlier build	Root cause	What I did
Cables slipped off the spool or jumped a groove	A fixed spool, so the cable's feed point moved along the drum as it wound.	Designed a spool that travels on a lead screw, so the feed point never moves (Step 02).
Path errors from software length compensation	The software was correcting a mechanical error, and any slip broke the correction.	Removed the error mechanically, so cable length is measured from a fixed point and needs no compensation.
Motor errors under load	Cable load was carried on the motor shafts.	Moved all load onto an independent pulley and shaft system; the motor only supplies torque (Step 04).
Steppers too small for the job	Motors chosen without a measured torque requirement.	Measured cable torque in line, sized new servos with a 2.5× safety factor and bench-tested them (Step 05).
Small bucket extruder	Concrete carried on the end effector, so capacity and weight were capped by the motors.	Moved the concrete off the robot: an external pump feeding a hose carried on its own cable system (Step 06).

Step 02 — Spooling

Make the Feed Point Stand Still.

I designed the spooling system from scratch. The spool rides on a lead screw: as it turns to wind or pay out cable, the screw moves it sideways by exactly one cable pitch per turn. The cable always leaves the spool from the same point in space, whatever its position on the drum.

That removed the problem instead of correcting for it. Cable length is calculated from that fixed point, so there is no drift to model and no software compensation to fall out of step when something slips.

Don't compensate in software for an error you can remove in the mechanism.

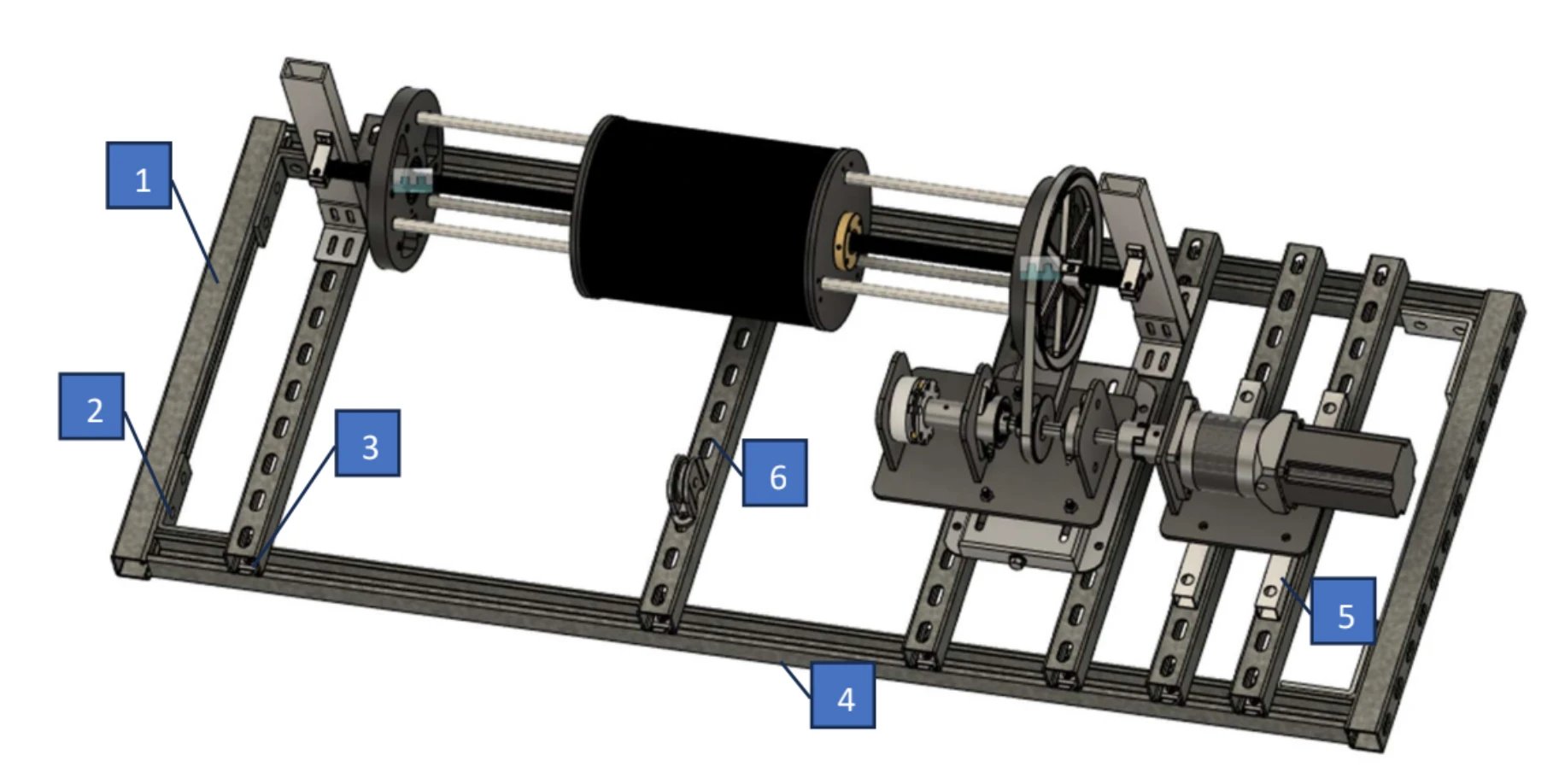

CAD model of one spool unit: the cable spool on a lead screw between two end supports, with three reinforcing rods, the belt drive and the motor mounted on a slotted-channel frame — One spool unit in CAD. The spool travels along its lead screw as it turns, so the cable always leaves from the same point; the drive train and motor sit alongside on the same frame.

Step 03 — Manufacturing

Build It for a Tenth of the Cost.

Machining every spool part in metal would have been expensive and slow to iterate. Instead I set up a small print farm of two Creality Ender-5 Plus, an Ultimaker S5 and AnkerMake FDM printers, and ran trial after trial to get the strongest prints I could. I designed for additive manufacturing throughout: print orientation, wall and infill strategy, and part consolidation, using what I'd learned from working with a lot of different printers.

The final spool unit combines printed parts with steel rod reinforcement, lead screws, lead nuts, linear bearings and structural members, each placed where its strength is needed. That brought the manufacturing cost down by about 10× compared with making the same parts in metal.

With one spool proven, I built seven more: eight spools in total, one for each cable on the robot.

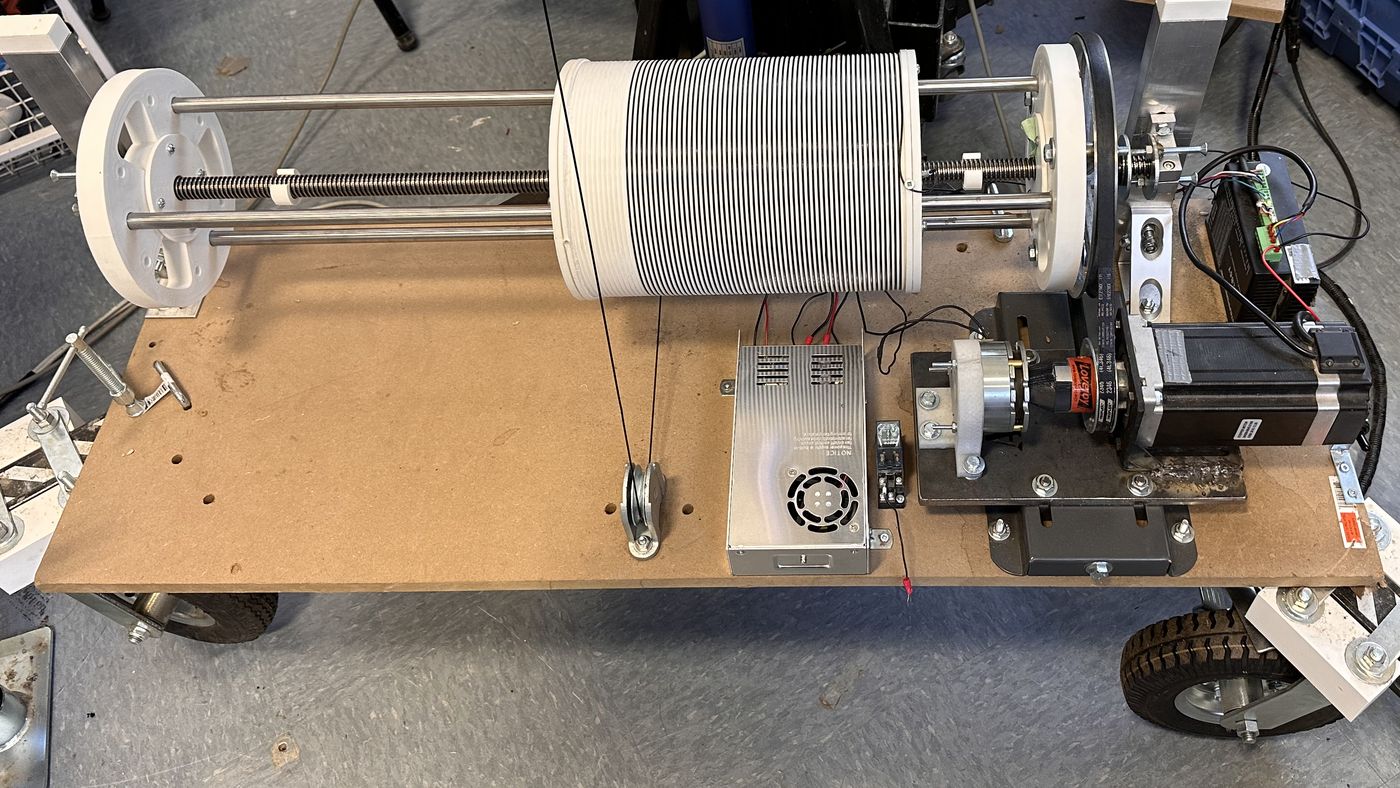

An early test iteration of a spool unit on its cart: white 3D-printed spool and end supports on a lead screw with three steel rods, the large pulley and belt, an old stepper motor with its brake, and the power supply — An early test iteration of the spool unit, running on an old stepper motor during the mechanical trials. The design was refined further before the final version.

Step 04 — Drive Train

Take the Load off the Motor.

In the earlier build the motor shafts carried the cable load, which caused motor errors. In the new design every part has one job:

The spool lives on its lead screw, reinforced by three parallel rods arranged around it.
That assembly turns on a large pulley.
A small pulley sits on its own independent shaft with an electronic solenoid brake to hold position.
A belt transmits power from the small pulley to the large one, with built-in tensioners to adjust belt tension.
The motor couples to the small pulley and is swappable. It supplies torque and nothing else.

I proved the mechanics first with old stepper motors: ran trial tests, found the problems and fixed them until the mechanical system ran without errors. At that point I had a stable machine that was clearly underpowered, and because the motors were swappable, that was now a motor choice rather than a redesign.

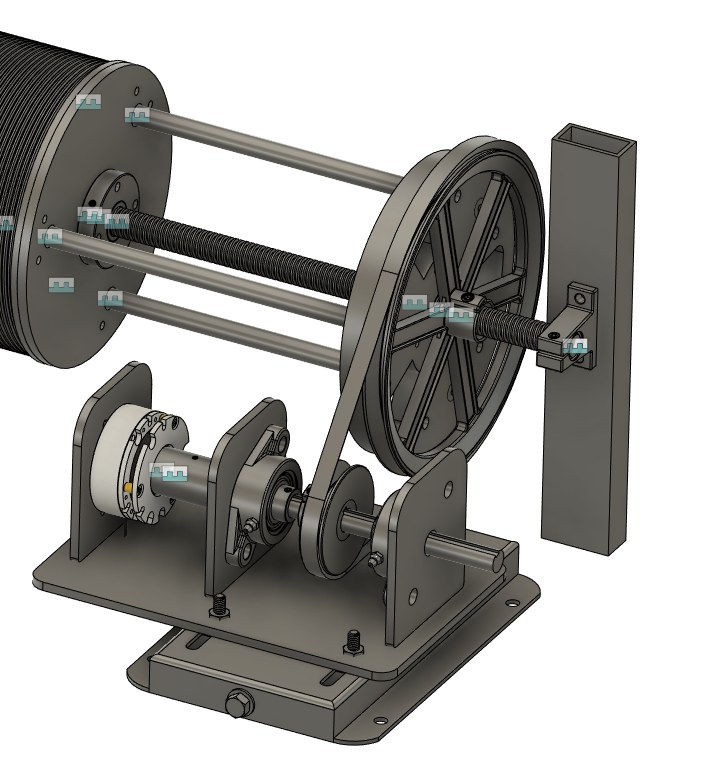

CAD close-up of the spool drive train: the spool and three rods turning with a large spoked pulley, a belt down to a small pulley on its own bearing-mounted shaft with a brake, on a slotted adjustable base — Drive train in CAD. The large pulley carries the spool; a belt brings power up from the small pulley, which runs on its own shaft and bearings with the brake. The slotted base sets belt tension, and the motor couples to the free shaft end.

Step 05 — Actuation

Measure the Torque, Then Buy the Motor.

A bench test showed the existing motors weren't delivering the torque on their spec sheet. So I stopped relying on spec sheets and measured what the job actually needed: the torque at the cable, near the spool, using an inline torque tester.

I sized new servos to that measured requirement with a 2.5× safety factor, and chose servos that each need only one power cable and one CAT6 cable for communication. The old motors ran separate power and communication cabling, so this kept the wiring much simpler across a machine this size. I swapped them in and repeated the test on the spool bench with weights. The new servos held the load with the margin intact.

That's the same discipline I use in regulated manufacturing: you don't assume a component meets spec, you verify it.

Step 06 — Extrusion

Feed Concrete From Outside the Machine.

A bucket on the end effector can never cover a 100 × 100 ft footprint: it runs out, and every kilogram it carries is load on the motors. I moved the concrete off the robot. A pump sits outside the system, and the hose runs to the extruder on a separate four-motor, four-cable support system that moves with the end effector.

That gave the printer a continuous supply of concrete: keep the pump fed and the machine keeps printing, with the hose weight carried by its own cables rather than the positioning cables.

Then I brought it up in stages, each one removing a class of error before the next:

Marker test to tune positioning accuracy.
Clay test to shake out extrusion problems without wasting concrete.
Concrete printing once the extruder errors were eliminated.

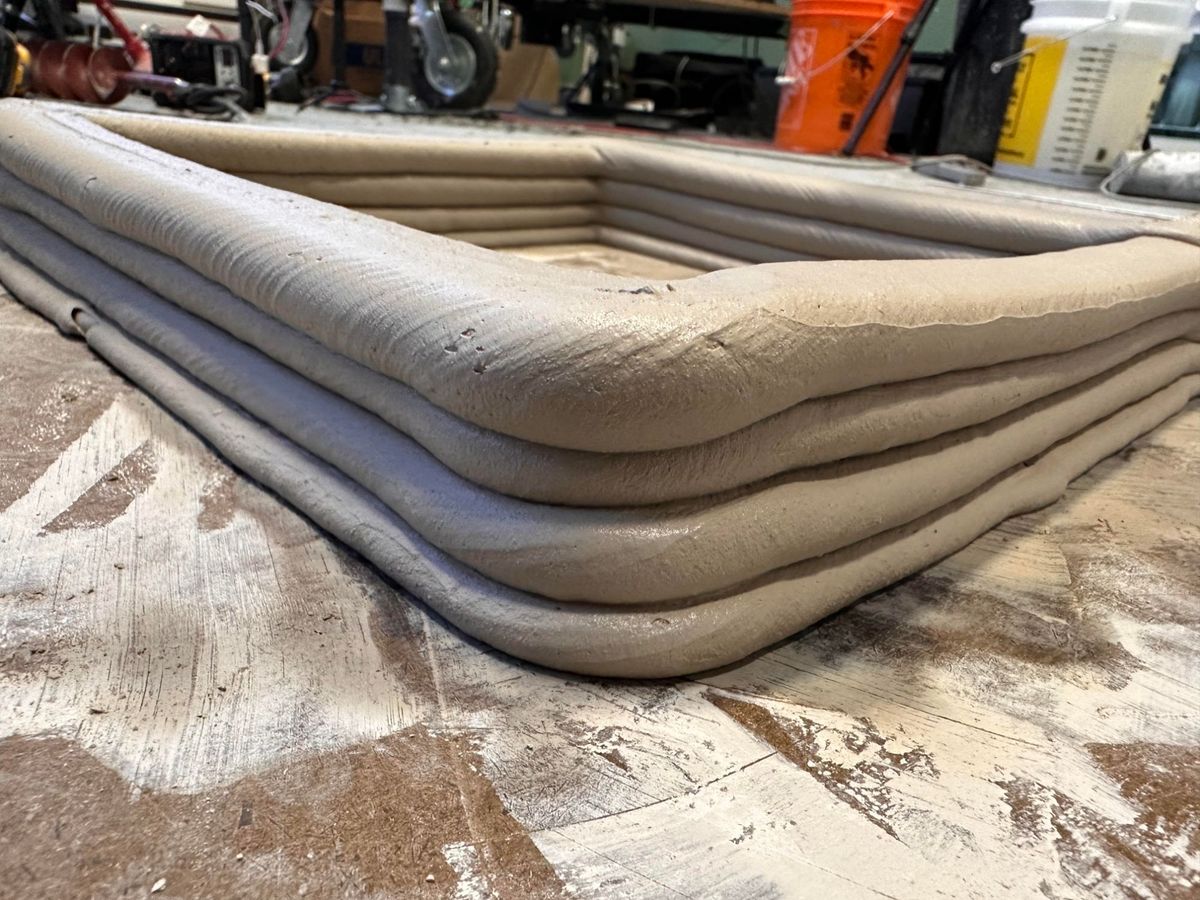

Close-up of a layered test print: four extruded beads stacked evenly, holding their shape through a corner — Close-up of a layered test print: consistent beads stacking cleanly, including through the corner.

Step 07 — Accuracy

Let the Machine See Its Own Path.

Over long runs we saw slight path errors build up. I added a camera vision system that uses the line already laid as its reference, measures how far the new path has drifted left or right, and corrects it by adjusting linear actuators on the cables.

With that in place, the machine was the first fully functional prototype: stable mechanics, measured actuation, continuous feed, and closed-loop correction of its own path.

Cable-driven concrete 3D printer demo, video thumbnail — The printer in operation.

03 — Takeaways

Beyond the Problem Statement.

The brief was a spool that kept slipping. I could have fixed that and handed back a machine that still couldn't print a house. A problem statement describes a symptom someone has noticed. The job is to understand what the product is meant to achieve and make sure it gets there.

Here that meant treating the printer as one system: fix the mechanism before choosing motors, measure before buying, take the concrete off the robot, and let the machine check its own work. The project grew well past its original scope, which is how hardware projects usually go when you follow the root causes.

Where it stood at handover

A fully functional prototype printing concrete with continuous feed and vision-based path correction.
Built for under $100K of a $1M budget, leaving the client the headroom to develop a commercial product.
With the proof of concept complete, my contract ended and I moved on to the next projects.
